Humatric F1 3D Dual

Description

Humatric F1 Dual 3D Force Plate

The Future of Force Analysis is Here. And It’s Radically Flat.

Humatric F1 is the ultra-thin, cost-effective 3D Force Plate that delivers gold-standard data without compromising your lab, your subjects, or your budget. Stop modifying your environment to fit your tools and start using a tool designed to fit your world.

Key Features

• Modular Design: Two independent 3D force plates (600x300x30mm each) which can be used separately for individual foot analysis or unified into a single 600x600x30mm platform for bilateral studies.
• High-Fidelity 3D Force Detection: Measures vertical (Fz), anterior-posterior (Fx), and medio-lateral (Fy) forces with exceptional accuracy and minimal crosstalk.
• Comprehensive Moment Analysis: Captures moments about all three axes (Mx, My, Mz) for a complete understanding of rotational forces.
• Superior Resolution and Linearity: Delivers high-resolution data with excellent linearity, ensuring precise and reliable measurements.
• Versatile Connectivity: Offers multiple data transmission options including high-speed USB, analog outputs for integration with other systems, and Wi-Fi for wireless data acquisition.
• Portable and Battery-Powered: A 3-hour battery autonomy with Wi-Fi communication enables flexible use in various environments without the constraints of cables.

Why Humatric F1 is the New Standard for 3D Force Plates

Most force plates were born in research labs and never learned to speak “athlete.” The Force Board Humatric Nur rewrites that story. A pair of 30 mm-thin, 3-D force pads clip together or operate independently, giving you single-leg granularity and full-platform power. It delivers laboratory precision (±0.05 % FS linearity) while surviving 9.6 kN landings and 2 kN shear loads — more than enough for elite sprinters, heavy-weight lifters, or clinical jump tests.

What you measure, instantly

Built-in 16-bit converters sample every channel at 1 000 Hz simultaneously, streaming via USB, Wi-Fi, Bluetooth, or ±10 V analog outs for real-time dashboards or high-speed camera sync. The onboard battery provides minimum three hours of untethered testing, so you can move from physio room to pitch without a cable hunt.

The bundled software auto-computes the metrics coaches and clinicians actually use:

Metric	Why it matters
Center of Pressure (CoP)	Pin-point stabilometry and asymmetry
Resultant & Shear Forces	Quantify true impact and friction demands
Moment Vector & Direction	Spot torsional stress that precedes injury
Loading Rate & Impulse	Differentiate “soft” vs. “stiff” landing strategies
Peak Detection	Flag overload events rep-by-rep

All raw data remain accessible for custom algorithms and Python/R pipelines.

Use cases that matter

• Footwear & surface testing – compare shear forces on turf vs. hardwood without lab walls.
• Return-to-play & ACL rehab – quantify asymmetry within single-leg hops in seconds.
• Power profiling – derive impulse and peak forces across full strength-speed spectrum.
• Start & landing mechanics – capture CoP travel to coach ankle stiffness or depth jumps.

Set-up in minutes, not hours

1. Place the pads or snap them together. — 1 minute
2. Connect via USB or launch the Wi-Fi hotspot — 1 minute
3. Calibrate with the guided wizard (one-click zeroing) – 1 minute
4. Test – sprint starts, balance drills, or Olympic lifts. Data streams live to laptop, tablet, or synchronizes with our cloud platform.

Dual-Use Flexibility

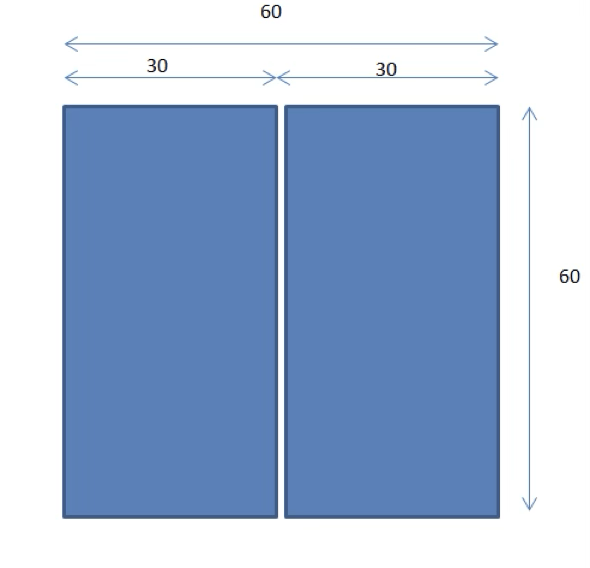

The Force Board Humatric Nur is engineered as a modular dual-use system. In its unified configuration, two 600 × 300 × 30 mm units seamlessly lock into a single 600 × 600 mm square platform — ideal for bilateral assessments, loaded jumps, squats, or symmetrical stance analysis.

Need single-leg granularity or split-stance testing? Simply detach and reposition the boards horizontally or vertically, side-by-side or inline. This modularity enables rapid reconfiguration for everything from gait analysis to dynamic balance work, making it a powerful tool for both clinic and performance environments.

With standardized mounting points and precise edge alignment, you can also expand beyond two plates to create customized layouts for sport-specific demands, such as sprint starts, agility drills, or even prosthetics testing.

It’s one system — infinitely reconfigurable.
